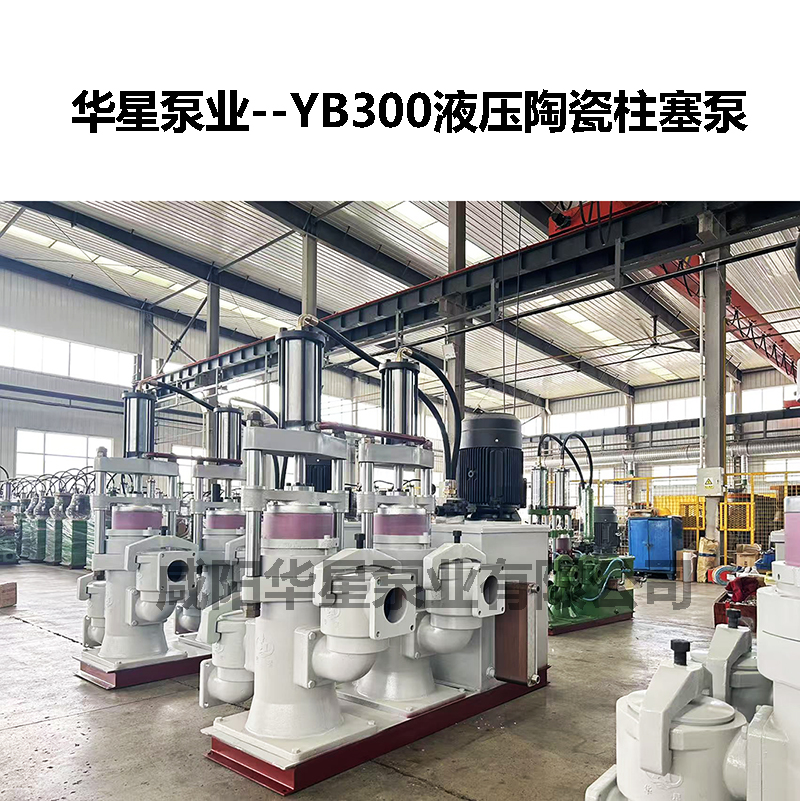

Energy-saving Ceramic Slurry Pump Specialized for Sand and Gravel: Characteristics and Advantages

In Terms of Working Principle:

1. Conveyance Realized by Plunger Movement

The ceramic slurry pump relies on the reciprocating movement of the plunger inside the cylinder block to change the volume of the working chamber, thereby achieving the suction and discharge of sand-gravel slurry. When the plunger moves backward, a negative pressure is formed in the working chamber to suck in the sand-gravel slurry; when the plunger moves forward, it squeezes the slurry to discharge it. This working method enables the pump to stably convey high-concentration sand-gravel slurry.

2. Compatibility with Filter Press Operation

When working in conjunction with a filter press, the output flow and pressure curve of the energy-saving ceramic slurry pump can basically match the filtration curve of the filter press. Before the cavity of the filter press is filled with materials, the pump maintains a large flow rate for feeding; as the pressure inside the filter press increases and the filtration capacity decreases, the operating speed of the pump reduces and the output flow automatically decreases, resulting in energy savings throughout the filter pressing process.

In Terms of Structural Design:

Ceramic Plunger Material

The plunger is made of ceramic material, featuring high hardness, high wear resistance, and excellent corrosion resistance. When conveying sand-gravel slurry, the ceramic plunger can resist the wear and corrosion caused by sand and gravel, which greatly extends the service life of the pump and reduces energy loss resulting from plunger wear.

Optimized Structural & Energy-Saving Technology Features

1. Optimized Sealing Structure

The pump’s sealing structure is designed with optimization, which can effectively prevent slurry leakage and improve the pump’s working efficiency. Excellent sealing performance reduces energy loss caused by leakage, while also avoiding environmental pollution resulting from slurry leakage.

2. Rational Flow Channel Design

The flow channel is designed rationally, which can reduce the flow resistance of slurry inside the pump and lower the pump’s operating energy consumption. The smooth flow channel allows the slurry to pass through the pump body quickly and smoothly, enhancing the pump’s conveying capacity.

3. Application of Energy-Saving Technologies

3.1 Automatic Variable Technology

Automatic variable technology is adopted to automatically adjust the pump’s output flow and pressure according to actual working conditions. For example, when the resistance in the conveying pipeline changes, the pump can automatically adjust the output parameters to maintain an optimal working state, avoiding energy waste caused by excessive output power.

3.2 Motor Drive

The pump is equipped with a high-efficiency energy-saving motor. With a high energy efficiency rating, the motor can effectively convert electrical energy into mechanical energy, improving energy utilization efficiency. At the same time, the motor operates with good stability, ensuring the long-term stable operation of the pump.

3.3 Intelligent Control System

An intelligent control system is installed to monitor the pump’s operating status in real time and automatically adjust the pump’s working parameters based on the monitoring data. For instance, when the pump’s load changes, the intelligent control system can promptly adjust the motor’s speed and output power, keeping the pump in a highly energy-saving working state at all times.

In Terms of Application Effects

1. Significant Energy-Saving Effect

Compared with traditional slurry pumps, the energy-saving ceramic slurry pump specialized for sand and gravel achieves a significant energy-saving effect, reducing energy consumption by more than 30% to 50%. During long-term use, it can help users save a substantial amount of energy costs.

2. High Conveying Efficiency

It can convey sand-gravel slurry stably and smoothly with high conveying efficiency. Whether in the process of conveying high-concentration slurry or long-distance conveying, it can maintain excellent working performance, meeting the production needs of sand and gravel manufacturing enterprises.

3. Low Maintenance Costs

Thanks to the adoption of high-quality materials and advanced manufacturing processes, the pump features high reliability and low maintenance costs. The wear resistance and corrosion resistance of the ceramic plunger reduce the frequency of plunger replacement, lowering maintenance workload and maintenance costs.
