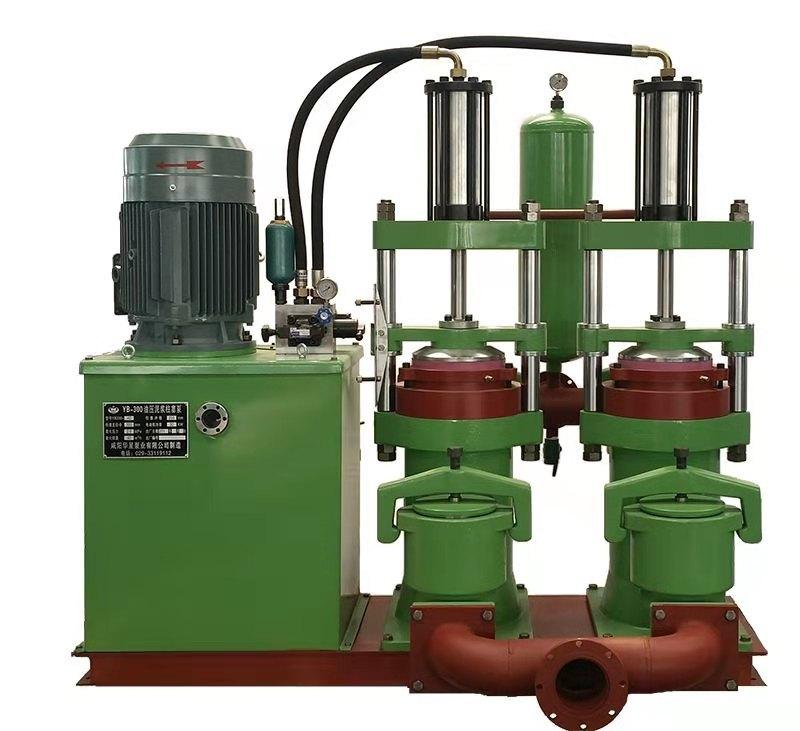

What Are the Precautions for Operating a Ceramic Plunger Mud Pump? Let’s Continue Reading

1. Preparation Before Startup

• Check the tightness of all components;
• Verify that the power supply system is properly connected;

Check the oil level in the oil tank; the height shall be based on the marked line on the oil sight glass of the tank. It is recommended to use anti-wear hydraulic oil for the hydraulic system.

2. During Startup

First, turn on the cooling water. Then press the start button to ensure the motor starts clockwise simultaneously with the oil pump.

3. Pressure and Stroke Adjustment

• The oil pressure (and thus the mud pressure) can be adjusted by regulating the relief valve. After setting the relief valve to the desired pressure, tighten the lock nut on it. There is no need to adjust the relief valve for subsequent startup or shutdown cycles.
• The stroke of the plunger can be adjusted by modifying the positions of the two cam wheels on the sliding frame.

Translation of Operating Instructions for Ceramic Plunger Slurry Pump

After a period of use, if slurry leakage occurs due to wear of the plunger and sealing ring, properly tighten the pressure ring until the leakage stops. If slurry still leaks even when the pressure ring is adjusted to contact the stuffing box, a gasket can be added to the upper end of the sealing ring or the sealing ring can be replaced.

To avoid uneven wear, it is essential to ensure that the plunger and the sealing ring are concentric. The upper end face of the pressure ring must remain parallel to the upper end face of the stuffing box, with a flatness tolerance of not less than 0.5mm.

4. Press the stop button to shut down the pump. It is crucial to remember to turn off the cooling water and rinse the remaining slurry in the inlet and outlet slurry valve boxes with water to ensure normal operation for the next use.

The above are the key points for using the ceramic plunger slurry pump, and we hope they will be helpful to you!
